The Remarkable Triple LED Lighted X-Tronic Fully Digital 1010-PRO is an Incredible Innovation of Technological Advancement in the Soldering Iron Market. The X-Tronic 1010-PRO Features Three 5mm LEDs (Light Emitting Diodes) Mounted on the Lower Shank Shroud to Illuminate your Working Area if you are working in a Dark Environment. These Three LEDs give off a Total of 6 Lumens of Visible Light (2 Lumens per Each LED).

The Remarkable • Triple LED Illuminating • X-Tronic 1010-PRO-ST - 65 W Soldering Iron - 5 Extra Solder Tips, 0-99 Min Sleep Func, Digital Calibration Func, C/F Conversion, Brass Sponge/Cleaning Flux

Features: 3 Each - 5mm LEDs (Light Emitting Diodes) Mounted on the Lower Shank Shroud of Soldering Iron to Illuminate your Working Area if you are working in a Dark Environment. This Soldering Iron is Anti-Static Designed & ESD Safe and has a 0-99 Minute Adjustable Sleep Function for Safety. Also Featured is a Temperature Calibration Function, Celsius/Fahrenheit Function & PID (Proportional-Integral-Derivative) Technology often referred to as “Magic Temperature Compensation Technology”.

Features Include:

• Anti-Statically Designed & ESD Safe,
• 3 Each - 5mm LEDs Mounted on the Lower Shank Shroud of Soldering for Illumination in a Dark Environment.
• A Programmable Sleep Timer Function which can be set from 0 to 99 Minutes (If you set the Sleep Timer Function at 0, then you have disabled it and it will not go to sleep at any time)
• A Temperature Correction/Calibration Function that can be used when the Heating Element starts to Fatigue over the years.
• A C/F (Celsius/Fahrenheit) Function
• Smart Temperature Detection and Open Circuit Protection along with Overload Protection.

This unit also Features a PID (Proportional-Integral-Derivative) Technology Program built into it which is commonly referred to as Magic Temperature Compensation Technology. This program cycles every 20 milliseconds to detect the actual temperature of the soldering iron's heating element/soldering tip and quickly corrects it with a rapid return to the correct set temperature. This Magic Temperature Compensation Technology also helps keep the soldering iron at a constant temperature no matter what type of job you are working on. This unit also has a Self Test Function with Full Intelligence on Over-Temps, Short Circuits and Overloads.

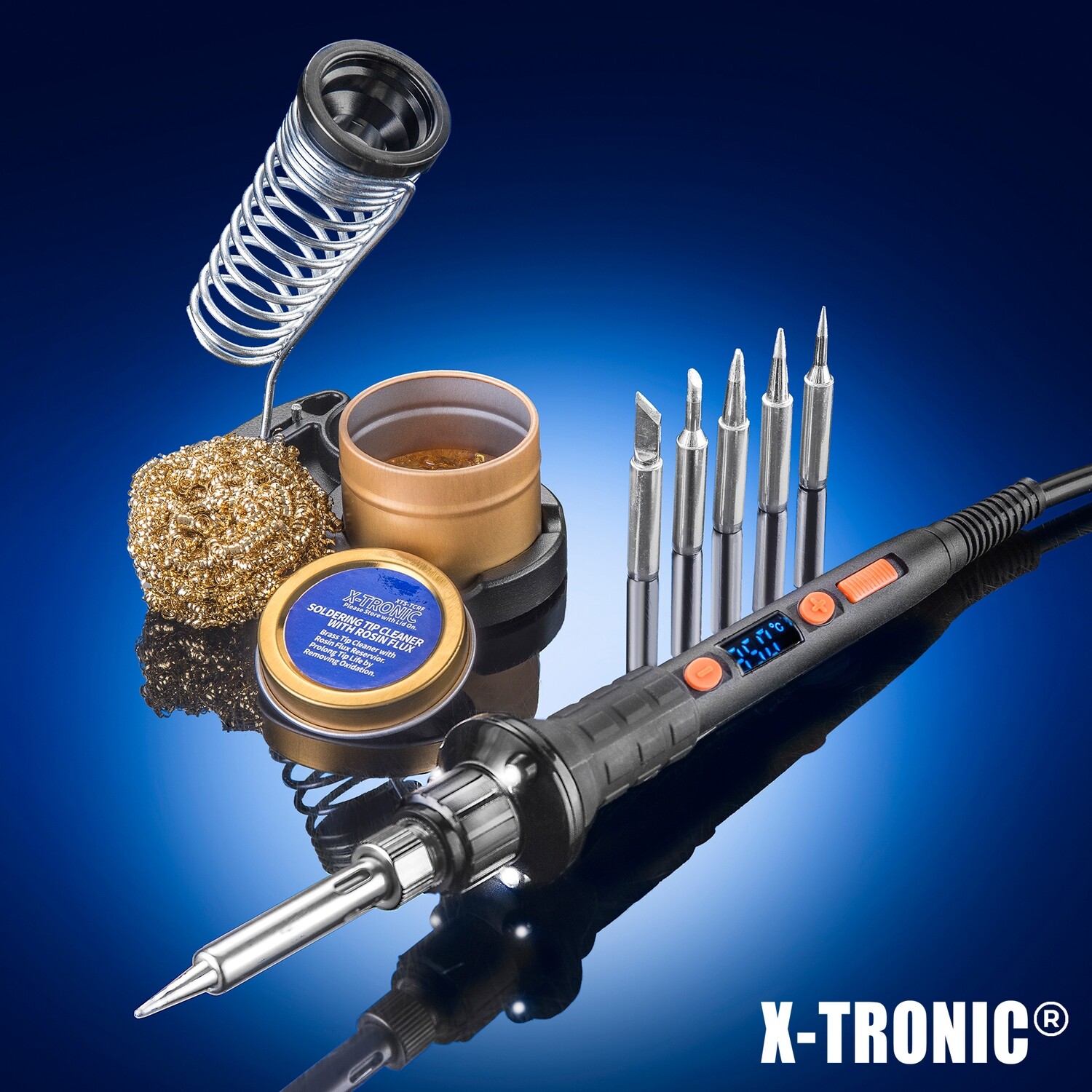

The 1st photo above shows the 65 Watt X-Tronic 1010-PRO Soldering Iron along with the Soldering Iron Holder. This photo also shows all of the Accessories that come with this Complete Kit (see photos & explanations of these below).

The 2nd photo above shows the Soldering Iron with it's 3 LEDs being used in a Dark Environment. Please note that this photo Has Not be retouched.

The 1st photo above shows the 65 Watt Soldering Iron with a Very Comfortable Ergonomic Grip that comes with this unit. The Temperature Range of this Soldering Iron is 194°F~896°F/90°C~480°C with a Temperature Stability of ±3.6°F/2.0°C. This Soldering Iron takes less than 30 Seconds to Heat Up from 194°F~896°F/90°C~480°C.

The 2nd photo above shows the Soldering Iron Holder with the Brass Sponge & Flux Tin Mounted to it. Please note that the bottom of the Soldering Iron Holder has some Very High Bond Double Sided Tape so you can Stick the Holder to your Workbench or Wherever you would like it positioned for Easy Access.

The 1st photo above shows the 5 Extra Sizes/Styles of Soldering Tips that also come with this unit. There is 1 of Each of the Following standard 900m Series Sizes/Styles Included: 1 Each T-1, 1 Each T-B, 1 Each T-3C, 1 Each T-2.4D & 1 Each T-K. All Soldering Tips are manufactured from High Quality Copper and Coated with Nickel Chromed Alloys for Strengthening the Hardness of the Tips.

The 2nd photo above shows the Brass Sponge in the Cleaning Tin and this also includes a Good Supply of Solid Rosin Flux at the bottom of the tin for help with cleaning your soldering tips which we are sure you will Greatly Appreciate! This!

This X-Tronic 1010-PRO Soldering Iron Includes:

1 - Model #1010-PRO Fully Digital 65 Watt Soldering Iron with Ergonomic Grip & 55" Power Cord

5 - Extra Assorted Soldering Tips (1 Each T-1, 1 Each T-B, 1 Each T-3C, 1 Each T-2.4D & 1 Each T-K)

1 - Stainless Steel Spring Soldering Iron Holder with Silicone Non Slip Bottom Base

1 - Brass Sponge Soldering Tip Cleaner with a Good Supply of Solid Rosin Flux in Round Tin Container

1 - Complete Illustrated Users Manual

X-Tronic 1010-PRO Soldering Iron Specifications:

• Model Number: XTR-1010-PRO-ST
• UPC Code: 892198001224
• Anti-Static Designed - ESD Safe
• Maximum Power Consumption: 65 Watts
• Temperature Range: 194°F~896°F/90°C~480°C
• Temperature Stability: ±3.6°F/2.0°C (Static)
• Operating Temperature: 32°F~104°F/0°C~40°C
• Storage Temperature: -4°F~176°F/-20°C~80°C
• Storage Humidity: 35% to 45%
• Shipping Weight: 1 Lb.
• AC 110V/120V - 60 Hz - NO 220V Available

Shipping & Handling is FREE to the 48 Contiguous United States via UPS Ground!


We also offer shipping to Alaska, Hawaii, Puerto Rico, Guam, Virgin Islands, APO/FPOs, and Canada. The cost will be calculated in your cart for your review BEFORE you pay. If you are unable to see shipping costs to your area, or if you have any questions regarding the cost, please contact us directly and we would be happy to quote a price for you.

3-Year Warranty

ALL X-Tronic USA Products come with a 30 Day Unconditional Money Back Guarantee and also come with a 3-Year Fix/Repair Warranty (Required Labor & Parts Covered)
