The X-Tronic 9080-XR3 - 110 Watt Heavy Duty "Fine to Medium Gauge Wire” LED Display Soldering Iron Station with Sleep, °C/°F Function & Calibration Function (± 99°C)

X-Tronic Model 9080-XR3 110 Watt Soldering Station

The 9080-XR3 was Manufactured to use when working with Fine to Medium Gauge Wire. What is considered to be "Fine to Medium" gauge wire is from .005" (0.13mm) to .040" (1.0mm) or 36 to18 AWG (American Wire Gauge). Basically, you can use this soldering station for connections on smaller PCB's like in Mobile Phones up to connections on Low Voltage Lighting & Lamp Cords.

The Model 9080-XR3 has a Programmable Sleep Timer (0,5,10 & 30 Minutes) Function, a Programmable Centigrade to Fahrenheit Function and a Programmable Calibration Function (± 99°C). It also Features a PID (Proportional-Integral-Derivative) Technology Program built into it which is commonly referred to as Magic Temperature Compensation Technology. This program cycles every 20 milliseconds to detect the actual temperature of the soldering iron's heating element/soldering tip and quickly corrects it with a rapid return to the correct set temperature. This Magic Temperature Compensation Technology also helps keep the soldering iron at a constant temperature no matter what type of job you are working on. This unit also has a Self Test Function with Full Intelligence on Over-Temps, Short Circuits, and Overloads.

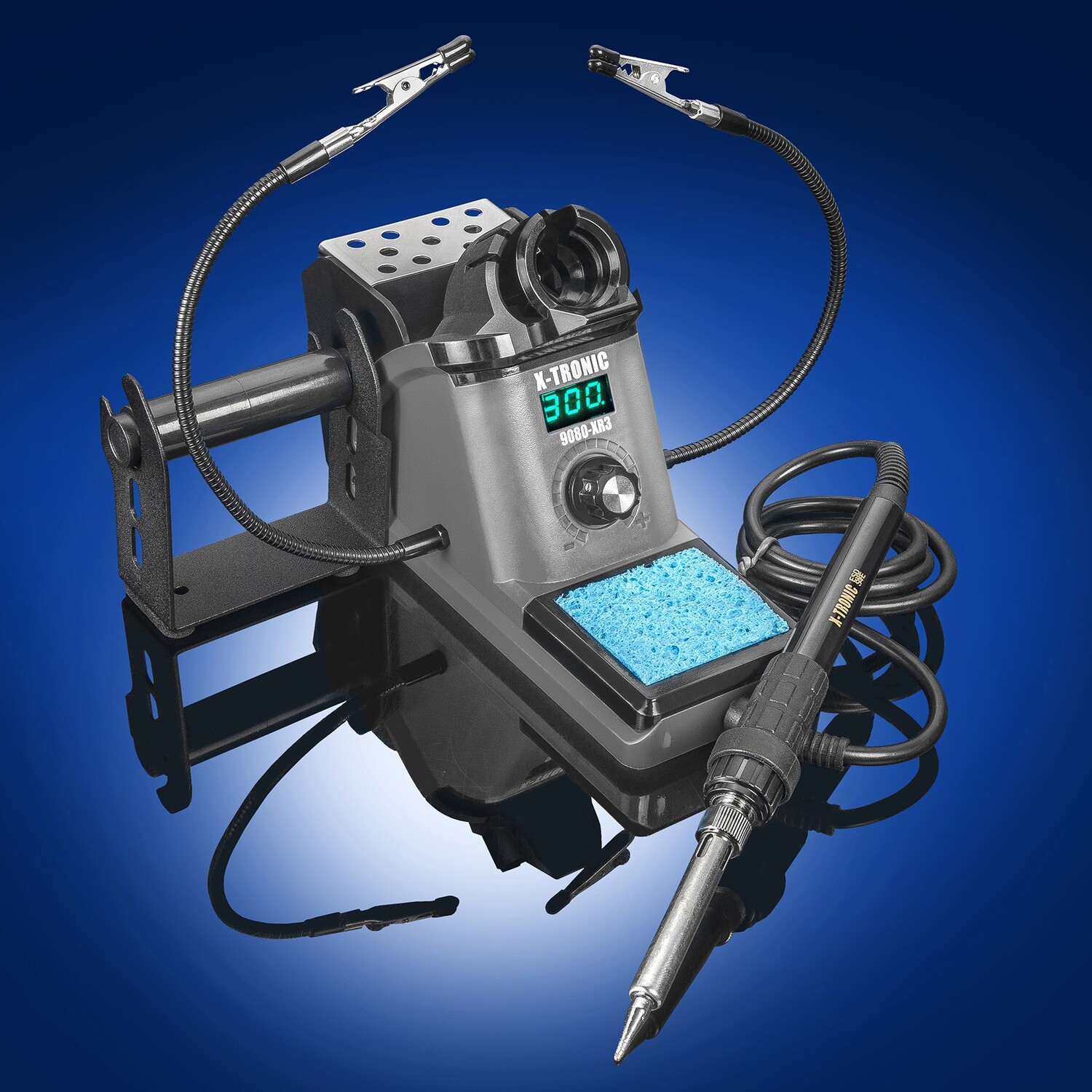

Included with the X-Tronic 9080-XR3 is the Main 110 Watt Power Unit along with a with a Very Comfortable Ergonomic Grip Soldering Iron, 2 Helping Hands (detachable), a Side Mounted Solder Roll Holder, a Top Mounted Soldering Iron Holder with Bakelite Insert, and a Wet Sponge.

We used Highly Visible Bright Green LED's for the Display Screen on our 9080-XR3 (shown in the 2nd photo above). You will be Pleasantly Surprised how Easy it is to read the Numbers and Symbols on the Display.

The Top Mounted Soldering Iron Holder (shown in the 1st photo above) is manufactured of Bakelite, which is a Special Polymer that will stop Heat Transfer from the Hot Soldering Iron Tip to any part of the rest of the Main Soldering Station Power Unit.

The 2nd photo above shows the 110 Watt Soldering Iron with a Very Comfortable Ergonomic Grip that comes with this unit. The Temperature Range of this Soldering Iron is 194°F~896°F/90°C~480°C with a Temperature Stability of ±1.8°F/1.0°C.

Another New Feature that comes with this unit is our New Set of 2 Helping Hands that are 10" Long (shown in the 3rd photo above). These Helping Hands screw into the 2 Screw Ports on the soldering station and are Very Helpful when working on smaller PCB's to hold them right up in front of you. Of course, these Helping Hands come with every unit, but it is Optional whether you attach them or not.

Please Note that standard 900m tips will Not Fit this unit. Only the oversized 980 tips will fit this unit.

This X-Tronic 9080-XR3 Complete Kit is shipped directly from our X-Tronic Headquarters located in Lincoln, Nebraska - USA!

The Complete X-Tronic 9080-XR3 Soldering Station Kit Includes:

1 - 110 Watt Soldering Iron Station (Main Power Unit)

1 - 110 Watt Soldering Iron with an Ergonomic Grip

2 - Helping Hands (Detachable)

1 - Top Mounted Soldering Iron Holder with Bakelite Insert (Controls Heat Transfer)

1 - Soldering Iron Holder attached to the Side of the Control Base Unit

1 - Wet Sponge

1 - Complete Illustrated Users Manual

X-Tronic 9080-XR3 Soldering Station Product Specifications & Features:

• ESD Safe
• Soldering Iron Station Total Output: 110 Watts
• Soldering Iron Output: 100 Watts
• Programmable Fahrenheit to Celsius Function
• Programmable Calibration Function (± 99°C)
• Programmable Sleep Timer (0, 5, 10 & 30) Minute Function

• 36 Inch Very Pliable Soldering Iron Cord with Virtually No Memory
• 55 Inch Power Cord (from Control Unit to Wall Plug)
• PID (Proportional-Integral-Derivative) Technology Built into this Unit - often referred to as "Magic Temperature Compensation Technology"
• Temperature Range: 194°F~896°F/90°C~480°C
• Soldering Iron Temperature Stability: ±1.8°F/1.0°C
• Storage Environment: -68°F~176°F/-20°C~80°C
• Shipping Weight: 2 Lbs.
• Actual Unit Weight: 1.25 Lbs.
• AC 110V/120V - 60 Hz - NO 220V Available
